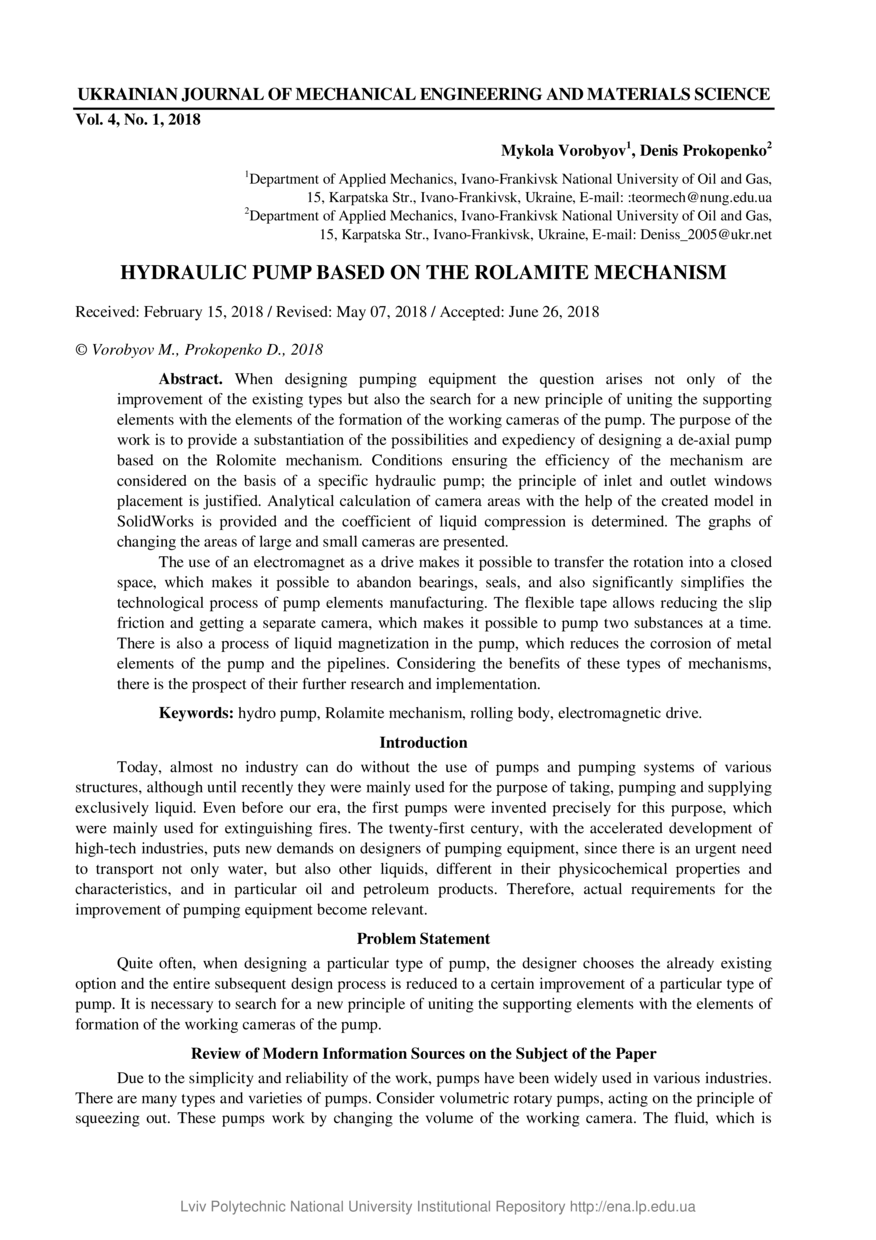

Hydraulic pump based on the rolamite mechanism
Date
2018-01-29
Authors
Journal Title
Journal ISSN
Volume Title
Publisher
Lviv Politechnic Publishing House
Abstract
When designing pumping equipment the question arises not only of the
improvement of the existing types but also the search for a new principle of uniting the supporting
elements with the elements of the formation of the working cameras of the pump. The purpose of the
work is to provide a substantiation of the possibilities and expediency of designing a de-axial pump
based on the Rolomite mechanism. Conditions ensuring the efficiency of the mechanism are
considered on the basis of a specific hydraulic pump; the principle of inlet and outlet windows
placement is justified. Analytical calculation of camera areas with the help of the created model in
SolidWorks is provided and the coefficient of liquid compression is determined. The graphs of
changing the areas of large and small cameras are presented.
The use of an electromagnet as a drive makes it possible to transfer the rotation into a closed
space, which makes it possible to abandon bearings, seals, and also significantly simplifies the
technological process of pump elements manufacturing. The flexible tape allows reducing the slip
friction and getting a separate camera, which makes it possible to pump two substances at a time.
There is also a process of liquid magnetization in the pump, which reduces the corrosion of metal
elements of the pump and the pipelines. Considering the benefits of these types of mechanisms,
there is the prospect of their further research and implementation.
Description
Keywords
hydro pump, Rolamite mechanism, rolling body, electromagnetic drive
Citation
Vorobyov M. Hydraulic pump based on the rolamite mechanism / Mykola Vorobyov, Denis Prokopenko // Ukrainian Journal of Mechanical Engineering and Materials Science. — Lviv : Lviv Politechnic Publishing House, 2018. — Vol 4. — No 1. — P. 105–115.
