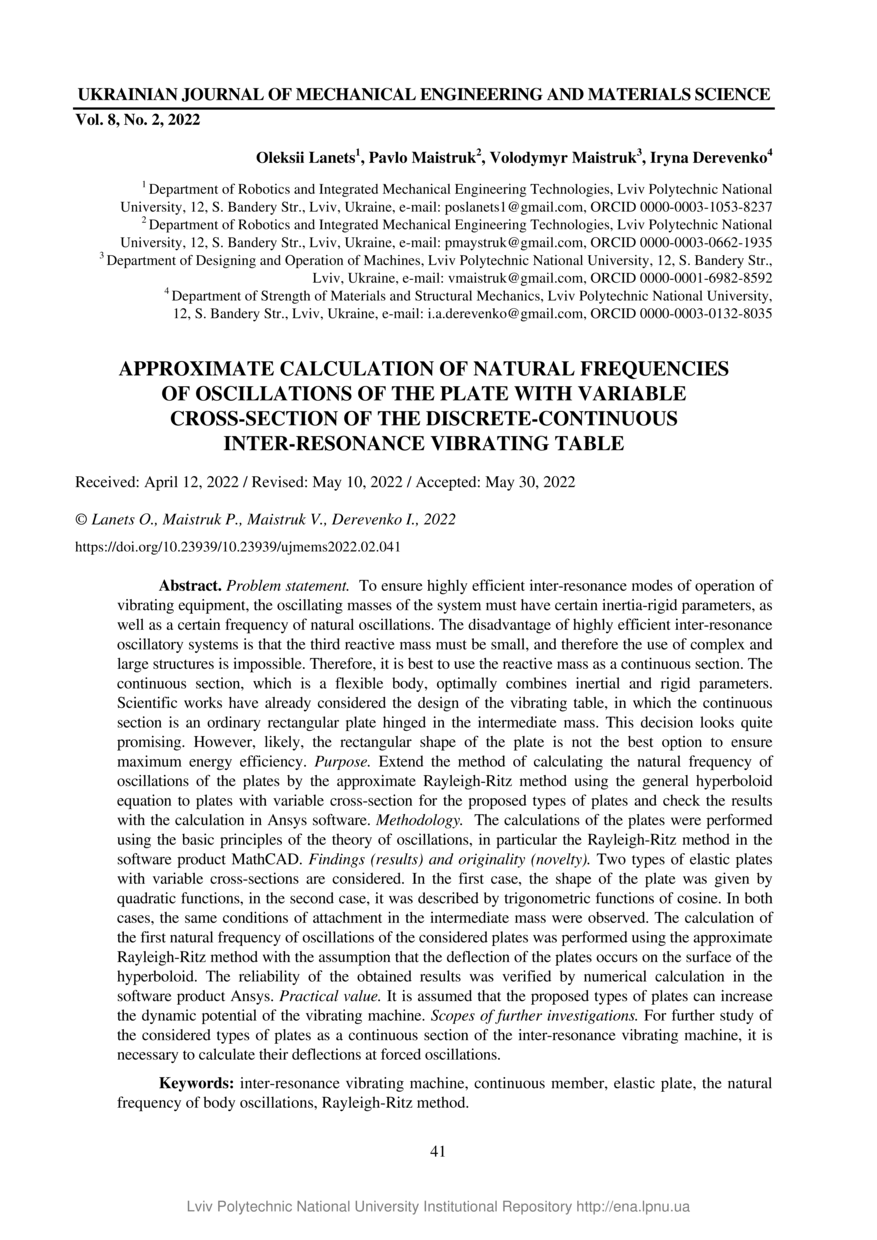

Approximate calculation of natural frequencies of oscillations of the plate with variable cross-section of the discrete-continuous inter-resonance vibrating table

Date

2022-02-22

Journal Title

Journal ISSN

Volume Title

Publisher

Видавництво Львівської політехніки
Lviv Politechnic Publishing House

Abstract

Problem statement. To ensure highly efficient inter-resonance modes of operation of vibrating equipment, the oscillating masses of the system must have certain inertia-rigid parameters, as well as a certain frequency of natural oscillations. The disadvantage of highly efficient inter-resonance oscillatory systems is that the third reactive mass must be small, and therefore the use of complex and large structures is impossible. Therefore, it is best to use the reactive mass as a continuous section. The continuous section, which is a flexible body, optimally combines inertial and rigid parameters. Scientific works have already considered the design of the vibrating table, in which the continuous section is an ordinary rectangular plate hinged in the intermediate mass. This decision looks quite promising. However, likely, the rectangular shape of the plate is not the best option to ensure maximum energy efficiency. Purpose. Extend the method of calculating the natural frequency of oscillations of the plates by the approximate Rayleigh-Ritz method using the general hyperboloid equation to plates with variable cross-section for the proposed types of plates and check the results with the calculation in Ansys software. Methodology. The calculations of the plates were performed using the basic principles of the theory of oscillations, in particular the Rayleigh-Ritz method in the software product MathCAD. Findings (results) and originality (novelty). Two types of elastic plates with variable cross-sections are considered. In the first case, the shape of the plate was given by quadratic functions, in the second case, it was described by trigonometric functions of cosine. In both cases, the same conditions of attachment in the intermediate mass were observed. The calculation of the first natural frequency of oscillations of the considered plates was performed using the approximate Rayleigh-Ritz method with the assumption that the deflection of the plates occurs on the surface of the hyperboloid. The reliability of the obtained results was verified by numerical calculation in the software product Ansys. Practical value. It is assumed that the proposed types of plates can increase the dynamic potential of the vibrating machine. Scopes of further investigations. For further study of the considered types of plates as a continuous section of the inter-resonance vibrating machine, it is necessary to calculate their deflections at forced oscillations.

Description

Keywords

inter-resonance vibrating machine, continuous member, elastic plate, the natural frequency of body oscillations, Rayleigh-Ritz method

Citation

Approximate calculation of natural frequencies of oscillations of the plate with variable cross-section of the discrete-continuous inter-resonance vibrating table / Oleksii Lanets, Pavlo Maistruk, Volodymyr Maistruk, Iryna Derevenko // Ukrainian Journal of Mechanical Engineering and Materials Science. — Lviv : Lviv Politechnic Publishing House, 2022. — Vol 8. — No 2. — P. 41–50.
