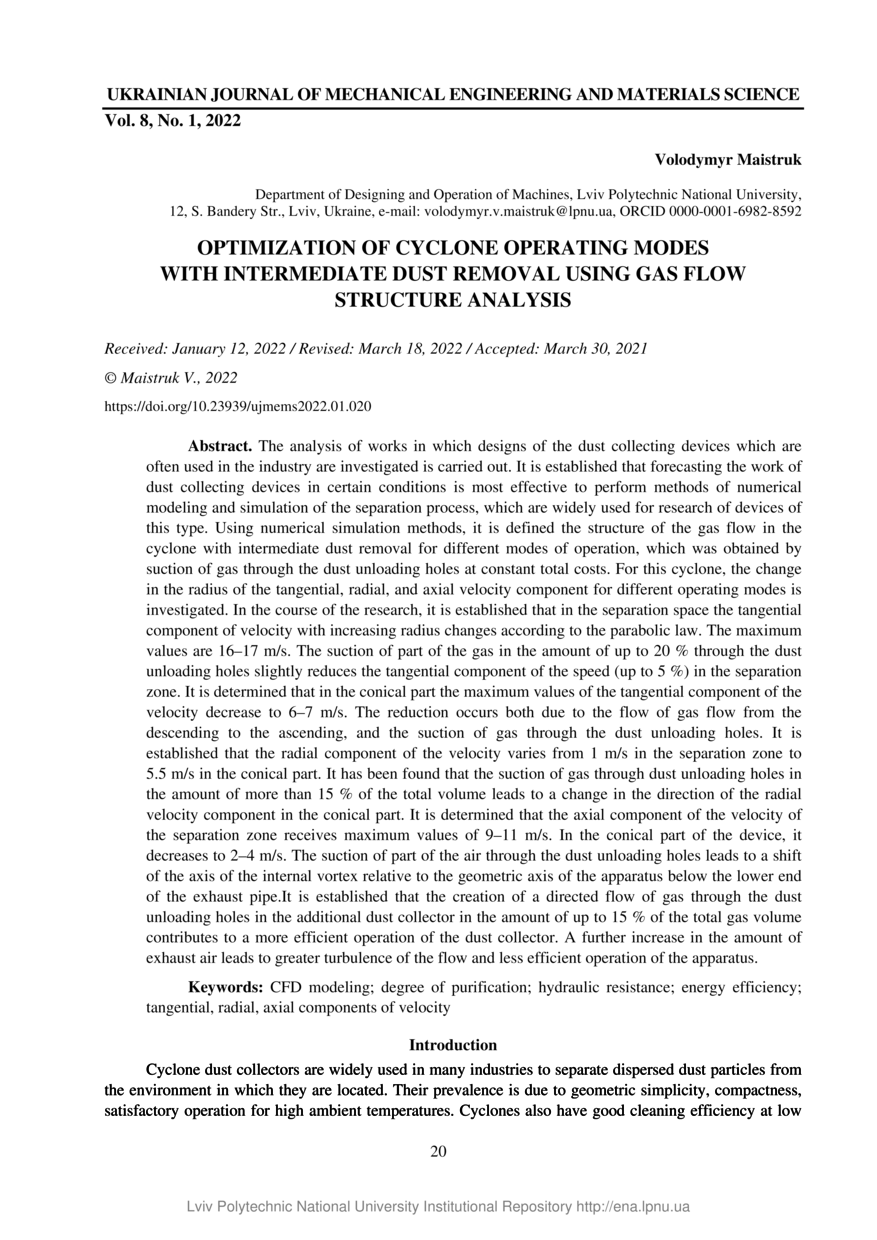

Optimization of cyclone operating modes with intermediate dust removal using gas flow structure analysis

Date

2022-02-22

Journal Title

Journal ISSN

Volume Title

Publisher

Видавництво Львівської політехніки
Lviv Politechnic Publishing House

Abstract

The analysis of works in which designs of the dust collecting devices which are often used in the industry are investigated is carried out. It is established that forecasting the work of dust collecting devices in certain conditions is most effective to perform methods of numerical modeling and simulation of the separation process, which are widely used for research of devices of this type. Using numerical simulation methods, it is defined the structure of the gas flow in the cyclone with intermediate dust removal for different modes of operation, which was obtained by suction of gas through the dust unloading holes at constant total costs. For this cyclone, the change in the radius of the tangential, radial, and axial velocity component for different operating modes is investigated. In the course of the research, it is established that in the separation space the tangential component of velocity with increasing radius changes according to the parabolic law. The maximum values are 16–17 m/s. The suction of part of the gas in the amount of up to 20 % through the dust unloading holes slightly reduces the tangential component of the speed (up to 5 %) in the separation zone. It is determined that in the conical part the maximum values of the tangential component of the velocity decrease to 6–7 m/s. The reduction occurs both due to the flow of gas flow from the descending to the ascending, and the suction of gas through the dust unloading holes. It is established that the radial component of the velocity varies from 1 m/s in the separation zone to 5.5 m/s in the conical part. It has been found that the suction of gas through dust unloading holes in the amount of more than 15 % of the total volume leads to a change in the direction of the radial velocity component in the conical part. It is determined that the axial component of the velocity of the separation zone receives maximum values of 9–11 m/s. In the conical part of the device, it decreases to 2–4 m/s. The suction of part of the air through the dust unloading holes leads to a shift of the axis of the internal vortex relative to the geometric axis of the apparatus below the lower end of the exhaust pipe.It is established that the creation of a directed flow of gas through the dust unloading holes in the additional dust collector in the amount of up to 15 % of the total gas volume contributes to a more efficient operation of the dust collector. A further increase in the amount of exhaust air leads to greater turbulence of the flow and less efficient operation of the apparatus.

Description

Keywords

CFD modeling, degree of purification, hydraulic resistance, energy efficiency, tangential, radial, axial components of velocity

Citation

Maistruk V. Optimization of cyclone operating modes with intermediate dust removal using gas flow structure analysis / Volodymyr Maistruk // Ukrainian Journal of Mechanical Engineering and Materials Science. — Lviv : Lviv Politechnic Publishing House, 2022. — Vol 8. — No 1. — P. 20–29.
