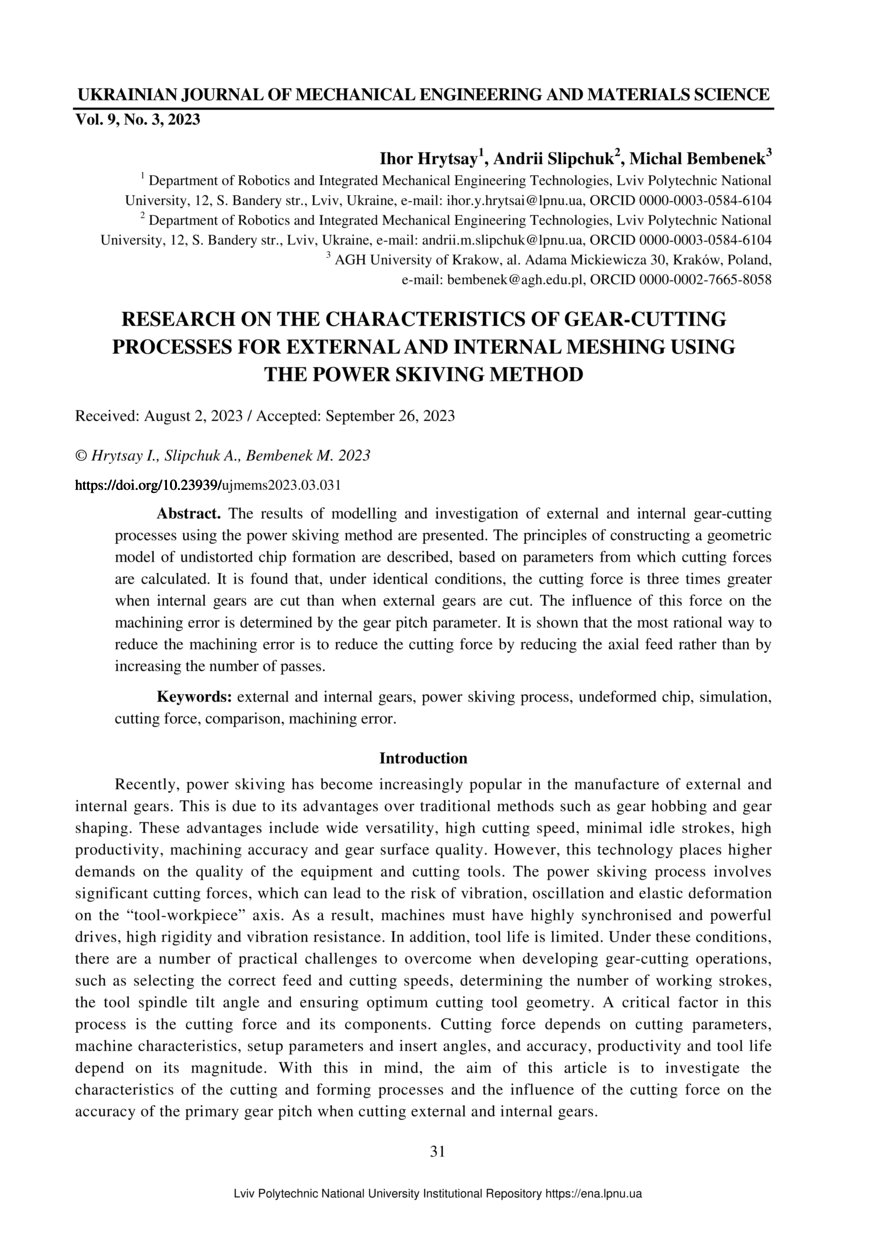

Research on the characteristics of gear-cutting processes for external and internal meshing using the power skiving method

Date

2023-02-28

Journal Title

Journal ISSN

Volume Title

Publisher

Видавництво Львівської політехніки
Lviv Politechnic Publishing House

Abstract

The results of modelling and investigation of external and internal gear-cutting processes using the power skiving method are presented. The principles of constructing a geometric model of undistorted chip formation are described, based on parameters from which cutting forces are calculated. It is found that, under identical conditions, the cutting force is three times greater when internal gears are cut than when external gears are cut. The influence of this force on the machining error is determined by the gear pitch parameter. It is shown that the most rational way to reduce the machining error is to reduce the cutting force by reducing the axial feed rather than by increasing the number of passes.

Description

Keywords

external and internal gears, power skiving process, undeformed chip, simulation, cutting force, comparison, machining error

Citation

Hrytsay I. Research on the characteristics of gear-cutting processes for external and internal meshing using the power skiving method / Ihor Hrytsay, Andrii Slipchuk, Michal Bembenek // Ukrainian Journal of Mechanical Engineering and Materials Science. — Lviv : Lviv Politechnic Publishing House, 2023. — Vol 9. — No 3. — P. 31–39.
