Багатоканальний імпульсний блок живлення радіоприймальних пристроїв на основі високочастотних магнітних підсилювачів

Simple item page
dc.citation.epage42
dc.citation.issue1
dc.citation.journalTitleОбчислювальні проблеми електротехніки
dc.citation.spage39
dc.contributor.affiliationTernopil Ivan Puluj National Technical University
dc.contributor.affiliationWest Ukrainian National University
dc.contributor.authorЯськів, Володимир Іванович
dc.contributor.authorЯськів, Анна
dc.contributor.authorYaskiv, Volodymyr
dc.contributor.authorYaskiv, Anna
dc.coverage.placenameЛьвів
dc.coverage.placenameLviv
dc.date.accessioned2024-04-11T09:15:14Z
dc.date.available2024-04-11T09:15:14Z
dc.date.created2023-02-28
dc.date.issued2023-02-28
dc.description.abstractСтворення якісного енергетичного забезпечення радіоприймальних пристроїв є актуальним завданням. У статті запропоновано нові методи проєктування високочастотних багатоканальних перетворювачів потужності з високою якістю вихідних напруг зі зниженням його топологічної складності та вартості. Описано принцип дії магнітного ключа на основі високочастотних магнітних підсилювачів, магнітопровід якого виготовлений із аморфного сплаву з прямокутною петлею гістерезису. Запропонована топологія дає змогу забезпечити кращу якість вихідної напруги, вищий рівень динамічних характеристик, надійності та ефективності перетворювача електроенергії. Вона також забезпечує низькі рівні як випромінюваних, так і кондуктивних електромагнітних завад. Крім того, це дає змогу реалізувати багатоканальні перетворювачі електроенергії з рівноцінними і незалежними вихідними каналами в широкому діапазоні вихідних потужностей. У роботі наведено приклад реалізації такого перетворювача для живлення радіоприймальних пристроїв.
dc.description.abstractDevelopment of high-quality energy supply of radio receiving devices is an urgent task. The article discusses the methods of designing high-frequency multi-channel power converters based on high-frequency magnetic amplifiers, the magnetic cores of which are made of an amorphous alloy with a rectangular hysteresis loop. Their significant advantages when powering radio receiving devices are the high quality of the output voltages and the low level of electromagnetic interference, both radiated and conductive. At the same time, they have a higher level of dynamic characteristics, reliability and efficiency while reducing their topological complexity and cost. In addition, it allows the implementation of multi-channel power converters with equivalent and independent output channels in a wide range of output powers. The paper presents the implementation of such a converter for powering radio receiving devices.
dc.format.extent39-42
dc.format.pages4
dc.identifier.citationЯськів В. І. Багатоканальний імпульсний блок живлення радіоприймальних пристроїв на основі високочастотних магнітних підсилювачів / Володимир Яськів, Анна Яськів // Обчислювальні проблеми електротехніки. — Львів : Видавництво Львівської політехніки, 2023. — Том 13. — № 1. — С. 39–42.
dc.identifier.citationenYaskiv V. Multi-Channel Switching Magamp Power Converter for Radio Recieving Devices / Volodymyr Yaskiv, Anna Yaskiv // Computational Problems of Electrical Engineering. — Lviv : Lviv Politechnic Publishing House, 2023. — Vol 13. — No 1. — P. 39–42.
dc.identifier.doidoi.org/10.23939/jcpee2023.01.039
dc.identifier.issn2224-0977
dc.identifier.urihttps://ena.lpnu.ua/handle/ntb/61721
dc.language.isouk
dc.publisherВидавництво Львівської політехніки
dc.publisherLviv Politechnic Publishing House
dc.relation.ispartofОбчислювальні проблеми електротехніки, 1 (13), 2023
dc.relation.ispartofComputational Problems of Electrical Engineering, 1 (13), 2023
dc.relation.references[1] K. H. Liu, F. C. Lee, “Resonant switches – a unified approach to improved performances of switching converters,” in Proc. IEEE INTELEC Conf. Rec., pp. 344–351, 1984.
dc.relation.references[2] Y. Yue, Y. Lin and Z. Yin, “A novel soft-switching communication power converter”, in Proc. 30th Chinese Control Conference, Yantai, China, 2011, pp. 1832–1834.
dc.relation.references[3] G. Pavlov, I. Vinnichenko and M. Pokrovskiy, “Estimation of Energy Efficiency of the Frequency Converter Based on the Resonant Inverter with PulseDensity Control”, in Proc. IEEE 3rd International Conference on Intelligent Energy and Power Systems (IEPS), Kharkiv, Ukraine, pp. 101–105, 2018.
dc.relation.references[4] K. Harada, T. Nabeshima, “Applications of magnetic amplifiers to high-frequency dc-to-dc converters”, in Proc. IEEE, Vol. 76, No. 4, April 1988, pp. 355–361.
dc.relation.references[5] M. Brkovic, S. Cuk, “Novel single-stage AC-to-DC converters with magnetic amplifiers and high power factor,” in Proc. IEEE APEC Conf. Rec. March 1995, Vol. 1, pp. 447–453.
dc.relation.references[6] R. Watson and F. Lee, “Analysis, Design, and Experimental Results of a 1-kW ZVS-FB-PWM Converter Employing Magamp Secondary-Side Control”, in Proc. IEEE Transactions on Industrial Electronics, 1998, Vol. 45, No. 5. pp. 806–814.
dc.relation.references[7] C. Wen, C. L. Chen, W. Chen, Jiang, J, “Magamp Post Regulation for Flyback Converter,” in Proc. IEEE Power Electron. Spec. Conf., pp. 333–338, 2001.
dc.relation.references[8] C.-L. Chen, C.-C. Wen, “Magamp application and limitation for multiwinding flyback converter”, IEE Proceedings – Electric Power Applications. June 2005, Vol. 152(3), pp. 517–525.
dc.relation.references[9] L. Hang, S. Wang, Y. Gu, W. Yao, Z. Lu, “High Cross-Regulation Multioutput LLC Series Resonant Converter with Magamp Postregulator”, IEEE Transactions on Industrial Electronics, Vol. 58, No. 9, pp. 3905–3913, Sept. 2011.
dc.relation.references[10] B. Mammano, Magnetic amplifier control for simple, low-cost, secondary regulation. Unitrode corporation [now Texas Instruments]. Lexington, MA 02173, 2001. SLUP129. URL: https://www.ti.com/lit/ml/slup129/slup129.pdf
dc.relation.references[11] Saturable cores for mag-amps, – Toshiba. URL: https://pdf.directindustry.com/pdf/toshiba-americaelectronics-components/saturable-cores-magamps/33679-562725.html#search-en-saturablecores-mag-amps
dc.relation.references[12] http://www.vacuumschmelze.de/
dc.relation.references[13] V. Yaskiv, “Using of high-frequency magnetic amplifier in switch mode dc power supplies”, in Proc. 35th Ann. IEEE Power Electronic Specialists Conf. (PESC’04), Aachen, 2004, pp. 1658–1662.
dc.relation.references[14] A. Yaskiv, “Mathematical modeling of remagnetization processes of soft magnetic materials with high steepness of hysteresis loop”, International Scientific-Technical Magazine “Measuring and Computing Devices in Technological Processes”, Vol. 4 (53), pp. 112–118, 2015 (Ukrainian).
dc.relation.references[15] V. Yaskiv, A. Abramovitz, K. Smedley, and A. Yaskiv, “MagAmp regulated isolated ac-dc converter with high power factor”, Communications – Scientific Letters of the University of Zilina, Vol. 1a, pp. 28–34, 2015.
dc.relation.references[16] V. Yaskiv, “MagApm Post-Regulator Small Signal Modeling”, Optoelectronic Information-Power Technologies, No. 1 (39), pp. 5–13, 2020.
dc.relation.references[17] V. Yaskiv, “Experimental research of dynamic characteristics of semiconductor power converters with high-frequency magnetic amplifiers”, “Technical Electrodynamics” (“Power electronics and energy efficiency” issue), Vol. 4, pp. 7–9, 2005.
dc.relation.references[18] V. Yaskiv and O. Yurchenko, “Unregulated Transistor Inverter for High-Frequency MagAmp Power Converters”, Comput. Problems of Electrical Engineering, Vol. 10, No. 1, pp. 45–50, 2020.
dc.relation.references[19] V. Yaskiv, “Providing of symmetrizing of the remagnetization process of power transformer of pushpull power converter”, International ScientificTechnical Magazine “Measuring and Computing Devices in Technological Processes”, Vol. 1, pp. 80–84, 2009 (Ukrainian).
dc.relation.references[20] V. Yaskiv, “Study of electromagnetic compatibility of semiconductor power converters with highfrequency magnetic amplifiers”,” Scientific applied journal “Technical Electrodynamics” (“Power electronics and energy efficiency” issue), Vol. 4, pp. 68–71, 2008 (Ukrainian).
dc.relation.references[21] V. Yaskiv, A. Abramovitz, and K. Smedley, “MagAmp power converters with low level EMI”, in Proc. XII International Conference “The Experience of designing and Application of CAD Systems in Microelectronics (CADSM 2013)”, Lviv Polytechnic National University, 19–23 Feb., 2013, PolyanaSvalyava (Zakarpattya), Ukraine, pp. 388–395.
dc.relation.references[22] V. Yaskiv, A. Yaskiv, and O. Yurchenko, “Synchronous rectification in High-Frequency MagAmp Power Converters”, [Electronic resource], Advanced Computer Information Technologies Proceedings of the International Conference Advanced Computer Information Technologies,(ACIT 2018), Ceske Budejovice, Czech Republic : CEUR, June 1–3, 2018, Vol. 2300, pp. 128–131. URL: http://ceur-ws.org/Vol-2300/
dc.relation.references[23] V. Yaskiv, O. Yurchenko, A. Martseniuk, and A.Yaskiv, “Synchronous Rectificier in HighFrequency 24V/15A MagAmp Power Converter”, in Proc. IEEE 4th International Conference on Intelligent Energy and Power Systems (IEPS). Istanbul, Turkey, 2020, pp. 113–117.
dc.relation.referencesen[1] K. H. Liu, F. C. Lee, "Resonant switches – a unified approach to improved performances of switching converters," in Proc. IEEE INTELEC Conf. Rec., pp. 344–351, 1984.
dc.relation.referencesen[2] Y. Yue, Y. Lin and Z. Yin, "A novel soft-switching communication power converter", in Proc. 30th Chinese Control Conference, Yantai, China, 2011, pp. 1832–1834.
dc.relation.referencesen[3] G. Pavlov, I. Vinnichenko and M. Pokrovskiy, "Estimation of Energy Efficiency of the Frequency Converter Based on the Resonant Inverter with PulseDensity Control", in Proc. IEEE 3rd International Conference on Intelligent Energy and Power Systems (IEPS), Kharkiv, Ukraine, pp. 101–105, 2018.
dc.relation.referencesen[4] K. Harada, T. Nabeshima, "Applications of magnetic amplifiers to high-frequency dc-to-dc converters", in Proc. IEEE, Vol. 76, No. 4, April 1988, pp. 355–361.
dc.relation.referencesen[5] M. Brkovic, S. Cuk, "Novel single-stage AC-to-DC converters with magnetic amplifiers and high power factor," in Proc. IEEE APEC Conf. Rec. March 1995, Vol. 1, pp. 447–453.
dc.relation.referencesen[6] R. Watson and F. Lee, "Analysis, Design, and Experimental Results of a 1-kW ZVS-FB-PWM Converter Employing Magamp Secondary-Side Control", in Proc. IEEE Transactions on Industrial Electronics, 1998, Vol. 45, No. 5. pp. 806–814.
dc.relation.referencesen[7] C. Wen, C. L. Chen, W. Chen, Jiang, J, "Magamp Post Regulation for Flyback Converter," in Proc. IEEE Power Electron. Spec. Conf., pp. 333–338, 2001.
dc.relation.referencesen[8] C.-L. Chen, C.-C. Wen, "Magamp application and limitation for multiwinding flyback converter", IEE Proceedings – Electric Power Applications. June 2005, Vol. 152(3), pp. 517–525.
dc.relation.referencesen[9] L. Hang, S. Wang, Y. Gu, W. Yao, Z. Lu, "High Cross-Regulation Multioutput LLC Series Resonant Converter with Magamp Postregulator", IEEE Transactions on Industrial Electronics, Vol. 58, No. 9, pp. 3905–3913, Sept. 2011.
dc.relation.referencesen[10] B. Mammano, Magnetic amplifier control for simple, low-cost, secondary regulation. Unitrode corporation [now Texas Instruments]. Lexington, MA 02173, 2001. SLUP129. URL: https://www.ti.com/lit/ml/slup129/slup129.pdf
dc.relation.referencesen[11] Saturable cores for mag-amps, Toshiba. URL: https://pdf.directindustry.com/pdf/toshiba-americaelectronics-components/saturable-cores-magamps/33679-562725.html#search-en-saturablecores-mag-amps
dc.relation.referencesen[12] http://www.vacuumschmelze.de/
dc.relation.referencesen[13] V. Yaskiv, "Using of high-frequency magnetic amplifier in switch mode dc power supplies", in Proc. 35th Ann. IEEE Power Electronic Specialists Conf. (PESC’04), Aachen, 2004, pp. 1658–1662.
dc.relation.referencesen[14] A. Yaskiv, "Mathematical modeling of remagnetization processes of soft magnetic materials with high steepness of hysteresis loop", International Scientific-Technical Magazine "Measuring and Computing Devices in Technological Processes", Vol. 4 (53), pp. 112–118, 2015 (Ukrainian).
dc.relation.referencesen[15] V. Yaskiv, A. Abramovitz, K. Smedley, and A. Yaskiv, "MagAmp regulated isolated ac-dc converter with high power factor", Communications – Scientific Letters of the University of Zilina, Vol. 1a, pp. 28–34, 2015.
dc.relation.referencesen[16] V. Yaskiv, "MagApm Post-Regulator Small Signal Modeling", Optoelectronic Information-Power Technologies, No. 1 (39), pp. 5–13, 2020.
dc.relation.referencesen[17] V. Yaskiv, "Experimental research of dynamic characteristics of semiconductor power converters with high-frequency magnetic amplifiers", "Technical Electrodynamics" ("Power electronics and energy efficiency" issue), Vol. 4, pp. 7–9, 2005.
dc.relation.referencesen[18] V. Yaskiv and O. Yurchenko, "Unregulated Transistor Inverter for High-Frequency MagAmp Power Converters", Comput. Problems of Electrical Engineering, Vol. 10, No. 1, pp. 45–50, 2020.
dc.relation.referencesen[19] V. Yaskiv, "Providing of symmetrizing of the remagnetization process of power transformer of pushpull power converter", International ScientificTechnical Magazine "Measuring and Computing Devices in Technological Processes", Vol. 1, pp. 80–84, 2009 (Ukrainian).
dc.relation.referencesen[20] V. Yaskiv, "Study of electromagnetic compatibility of semiconductor power converters with highfrequency magnetic amplifiers"," Scientific applied journal "Technical Electrodynamics" ("Power electronics and energy efficiency" issue), Vol. 4, pp. 68–71, 2008 (Ukrainian).
dc.relation.referencesen[21] V. Yaskiv, A. Abramovitz, and K. Smedley, "MagAmp power converters with low level EMI", in Proc. XII International Conference "The Experience of designing and Application of CAD Systems in Microelectronics (CADSM 2013)", Lviv Polytechnic National University, 19–23 Feb., 2013, PolyanaSvalyava (Zakarpattya), Ukraine, pp. 388–395.
dc.relation.referencesen[22] V. Yaskiv, A. Yaskiv, and O. Yurchenko, "Synchronous rectification in High-Frequency MagAmp Power Converters", [Electronic resource], Advanced Computer Information Technologies Proceedings of the International Conference Advanced Computer Information Technologies,(ACIT 2018), Ceske Budejovice, Czech Republic : CEUR, June 1–3, 2018, Vol. 2300, pp. 128–131. URL: http://ceur-ws.org/Vol-2300/
dc.relation.referencesen[23] V. Yaskiv, O. Yurchenko, A. Martseniuk, and A.Yaskiv, "Synchronous Rectificier in HighFrequency 24V/15A MagAmp Power Converter", in Proc. IEEE 4th International Conference on Intelligent Energy and Power Systems (IEPS). Istanbul, Turkey, 2020, pp. 113–117.
dc.relation.urihttps://www.ti.com/lit/ml/slup129/slup129.pdf
dc.relation.urihttps://pdf.directindustry.com/pdf/toshiba-americaelectronics-components/saturable-cores-magamps/33679-562725.html#search-en-saturablecores-mag-amps
dc.relation.urihttp://www.vacuumschmelze.de/
dc.relation.urihttp://ceur-ws.org/Vol-2300/
dc.rights.holder© Національний університет “Львівська політехніка”, 2023
dc.subjectpower supply
dc.subjectpower converter
dc.subjecthighfrequency magnetic amplifier
dc.subjectamorphous alloy’ rectangular hysteresis loop
dc.subjectradio receiving devices

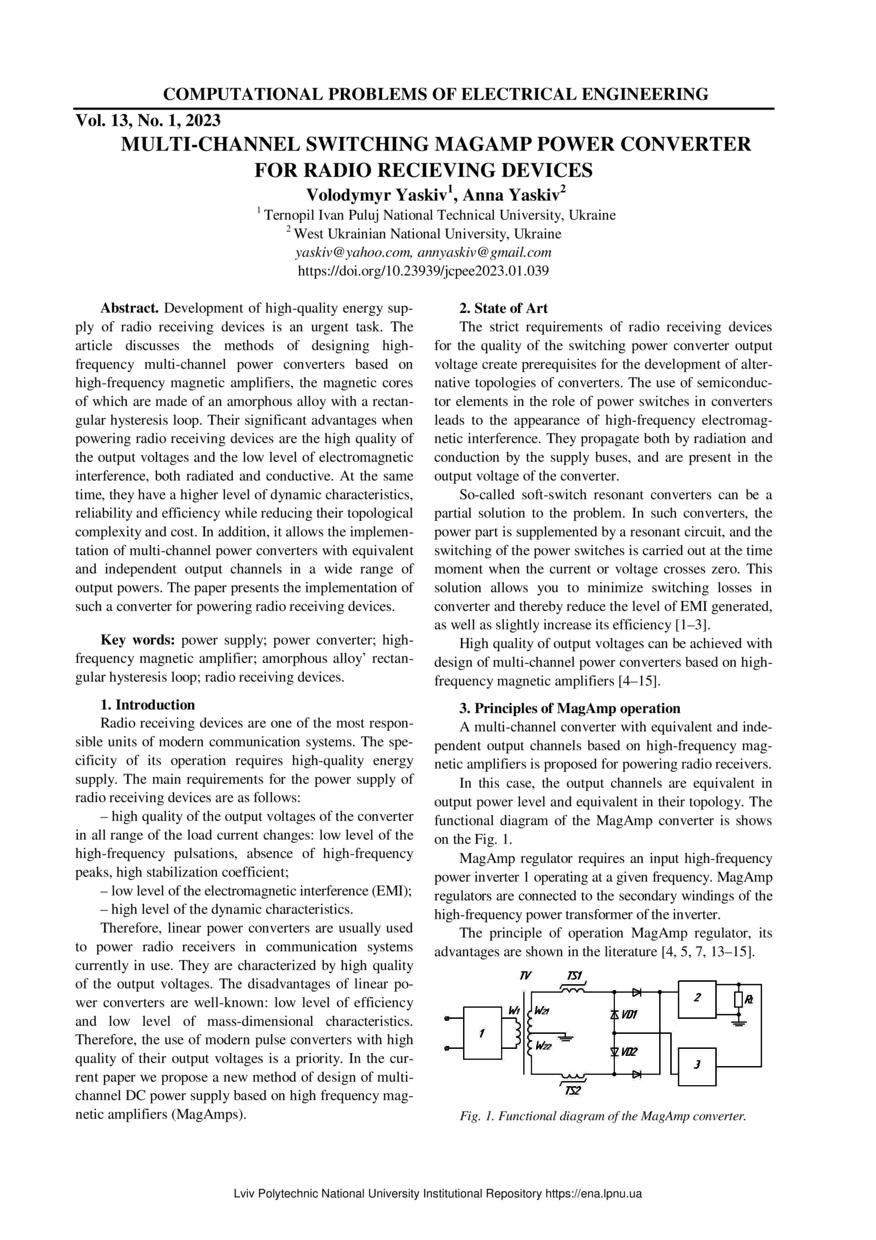

dc.titleБагатоканальний імпульсний блок живлення радіоприймальних пристроїв на основі високочастотних магнітних підсилювачів
