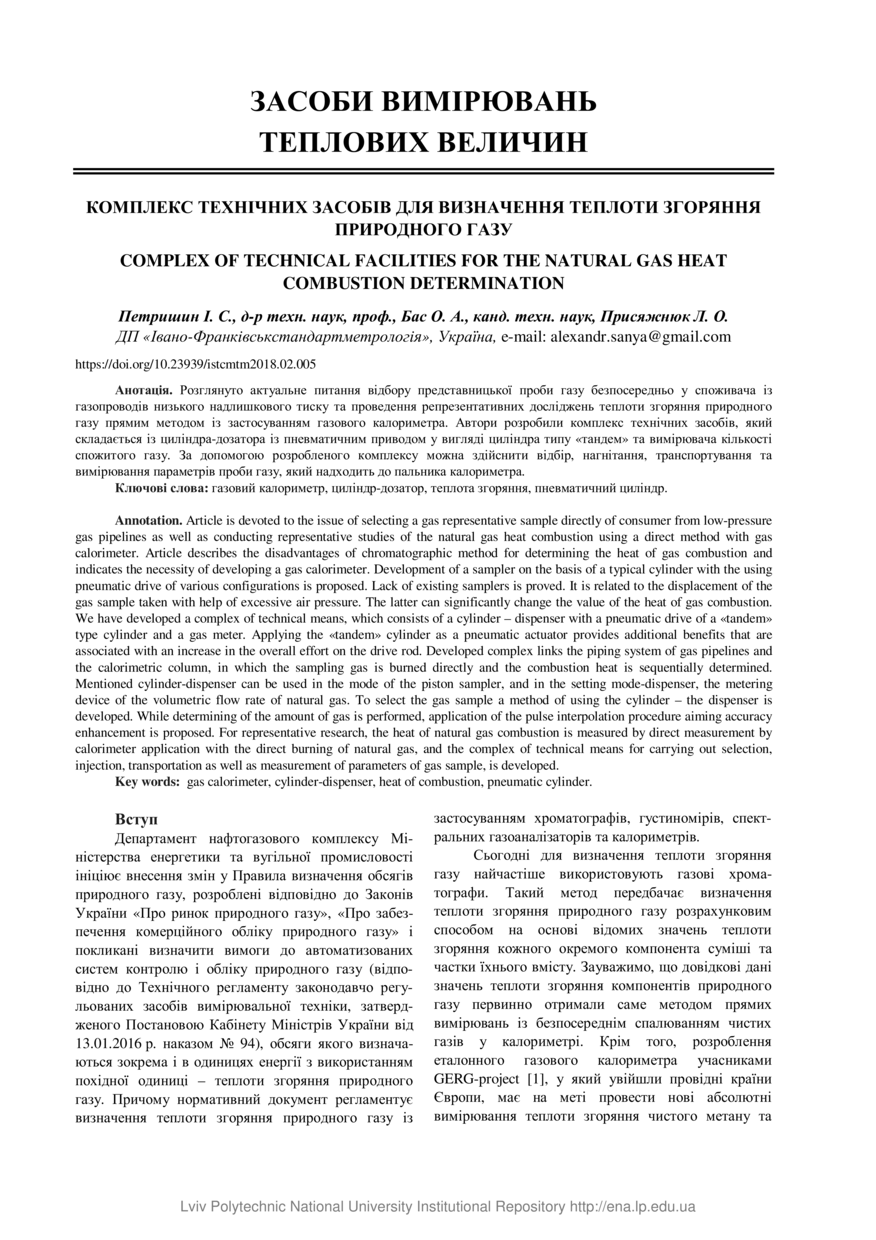

Комплекс технічних засобів для визначення теплоти згоряння природного газу
Date
2018-02-26
Journal Title
Journal ISSN
Volume Title
Publisher
Видавництво Львівської політехніки
Abstract
Розглянуто актуальне питання відбору представницької проби газу безпосередньо у споживача із
газопроводів низького надлишкового тиску та проведення репрезентативних досліджень теплоти згоряння природного
газу прямим методом із застосуванням газового калориметра. Автори розробили комплекс технічних засобів, який
складається із циліндра-дозатора із пневматичним приводом у вигляді циліндра типу «тандем» та вимірювача кількості
спожитого газу. За допомогою розробленого комплексу можна здійснити відбір, нагнітання, транспортування та
вимірювання параметрів проби газу, який надходить до пальника калориметра.
Article is devoted to the issue of selecting a gas representative sample directly of consumer from low-pressure gas pipelines as well as conducting representative studies of the natural gas heat combustion using a direct method with gas calorimeter. Article describes the disadvantages of chromatographic method for determining the heat of gas combustion and indicates the necessity of developing a gas calorimeter. Development of a sampler on the basis of a typical cylinder with the using pneumatic drive of various configurations is proposed. Lack of existing samplers is proved. It is related to the displacement of the gas sample taken with help of excessive air pressure. The latter can significantly change the value of the heat of gas combustion. We have developed a complex of technical means, which consists of a cylinder – dispenser with a pneumatic drive of a «tandem» type cylinder and a gas meter. Applying the «tandem» cylinder as a pneumatic actuator provides additional benefits that are associated with an increase in the overall effort on the drive rod. Developed complex links the piping system of gas pipelines and the calorimetric column, in which the sampling gas is burned directly and the combustion heat is sequentially determined. Mentioned cylinder-dispenser can be used in the mode of the piston sampler, and in the setting mode-dispenser, the metering device of the volumetric flow rate of natural gas. To select the gas sample a method of using the cylinder – the dispenser is developed. While determining of the amount of gas is performed, application of the pulse interpolation procedure aiming accuracy enhancement is proposed. For representative research, the heat of natural gas combustion is measured by direct measurement by calorimeter application with the direct burning of natural gas, and the complex of technical means for carrying out selection, injection, transportation as well as measurement of parameters of gas sample, is developed.
Article is devoted to the issue of selecting a gas representative sample directly of consumer from low-pressure gas pipelines as well as conducting representative studies of the natural gas heat combustion using a direct method with gas calorimeter. Article describes the disadvantages of chromatographic method for determining the heat of gas combustion and indicates the necessity of developing a gas calorimeter. Development of a sampler on the basis of a typical cylinder with the using pneumatic drive of various configurations is proposed. Lack of existing samplers is proved. It is related to the displacement of the gas sample taken with help of excessive air pressure. The latter can significantly change the value of the heat of gas combustion. We have developed a complex of technical means, which consists of a cylinder – dispenser with a pneumatic drive of a «tandem» type cylinder and a gas meter. Applying the «tandem» cylinder as a pneumatic actuator provides additional benefits that are associated with an increase in the overall effort on the drive rod. Developed complex links the piping system of gas pipelines and the calorimetric column, in which the sampling gas is burned directly and the combustion heat is sequentially determined. Mentioned cylinder-dispenser can be used in the mode of the piston sampler, and in the setting mode-dispenser, the metering device of the volumetric flow rate of natural gas. To select the gas sample a method of using the cylinder – the dispenser is developed. While determining of the amount of gas is performed, application of the pulse interpolation procedure aiming accuracy enhancement is proposed. For representative research, the heat of natural gas combustion is measured by direct measurement by calorimeter application with the direct burning of natural gas, and the complex of technical means for carrying out selection, injection, transportation as well as measurement of parameters of gas sample, is developed.
Description
Keywords
газовий калориметр, циліндр-дозатор, теплота згоряння, пневматичний циліндр, gas calorimeter, cylinder-dispenser, heat of combustion, pneumatic cylinder
Citation
Петришин І. С. Комплекс технічних засобів для визначення теплоти згоряння природного газу / І. С. Петришин, О. А. Бас, Л. О. Присяжнюк // Вимірювальна техніка та метрологія : міжвідомчий науково-технічний збірник. — Львів : Видавництво Львівської політехніки, 2018. — Том 79. — № 2. — С. 5–12.
